The Diagbox
for Lexia 3 V48 PP2000 V25 Citroen and Peugeot diagnostic has newly upgraded to
latest V7.57. Here is the step-by-step Daigbox V7.57 installation instruction:
Lexia 3 Diagbox V7.57 installation video:
ⅠInstall DiagBox V7.57 setup1
1)
Insert CD software into the computer
2)
Open Diagbox V7.57 (E:) CD
3)
Select and open setup1
4) After
loading setup. Select system language
5) Accept
SPTD setup license agreement.
6) Restart
the computer
7) Select
language again
8) Accept
license agreement
9) Save
file to a certain folder and click next

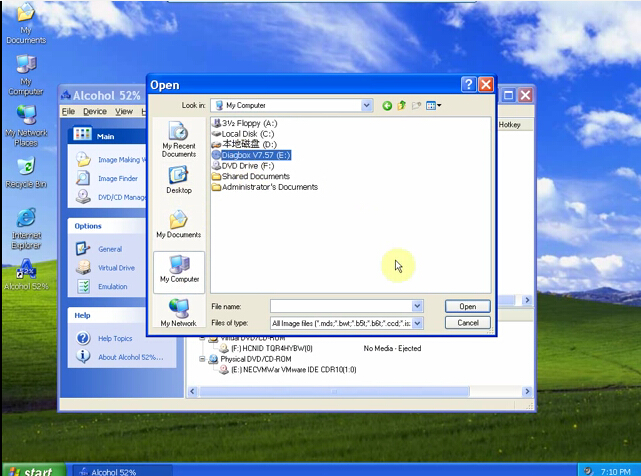

10) Select
Alcohol 52% file on the desktop, select Add image from my computer Diagbox
V7,57 and mount on Setup BDV0702
11) Setup
is installing. Select language again.
Ⅱ Install DaigBox-setup
12) Open
Diagbox.V07.02(F:) and open Diagbox-setup driver
13) Select
language. Installing setup driver will
generate three folders on the desktop, EmalDiag, WEBEX and Diagbox. Accept the
windows security alert
14) Diagbox
software is loading.
Ⅲ Activate Lexia 3 DiagBox
software
15) The
system will prompt ACTIVATION message, click manually activation (3rd option)
16) Check
your customer code and correct it if it is not correct
17) Please
wait until the software complete installation. Usually it will take about 12 minutes.
The waiting time depends on your computer configuration
18) After
complete install, click Yes to continue When come to the PARAMETER program, fill
in the Dealership Information and Technician information , including Company
name, Address, Post Code etc
19) Click
No when the system asks for new update. Select Citroen or Peugeot band in BRAND
SELECTION program and then select detail vehicle model to check vehicle
information.
20) Close
the activation program. Unlock windows security alert
Ⅳ Update DiagBox to V7.57
You can
not directly update DiagBox to V7.57. You have first update to V7.44, than
update V7.44 to V7.49, then update V7.49 from V7.57.
21) Open
DiagBox shortcut on the desktop, the software is updating to V7.02
 |
22) When
the system asks for an update, click no. Check the vehicle information again. Close
the program.
23) Open
DiagBox V7.57(E:) CD software on My computer. Select setup3 update V7.02 to V7.57 file.
24) Select
DiagBox Update V7.xx to V7.44, select language, accept windows prompts
25) Enter
the setup password, scary01
26) After
update complete, select no to restart the computer now but restart the computer
later.
Back to
setup3 folder, select Update V7.44 to V7.49, follow the operation of updating DiagBox
V7.xx to V7.44.
28) Select
DaigBox Update V7.49 t0 V7.57. Follow the same update operation as previous
update.
29) After
update Diagbox from V7.57, open DiagBox shortcut on the desktop
30) Here
is the new DiagBox software program of V7.57
31) Please
connect the device to the car, then use the short USB cable to connect with the
computer, then it will prompt to install driver.
32) Select
the application as LEXIA
33) Enter
missing information
34) Come
to the main diagnosis function, select the function you want to project.
